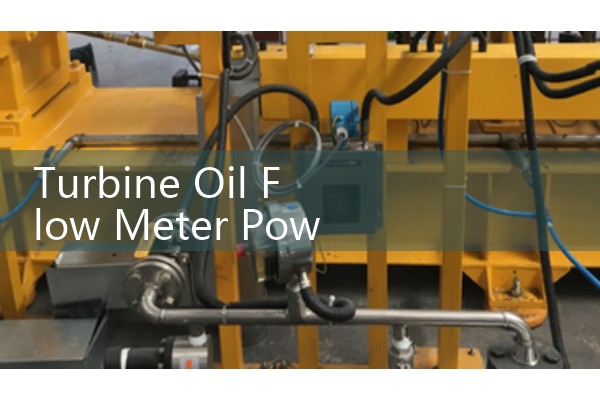

Turbine Oil Flow Meters for Power Plant Maintenance Controls
Quick Answer: Turbine oil flow monitoring is a direct trip signal, not an optional check. A reliable flow meter protects journal bearings and avoids forced outages. Silver Instruments supplies oval gear flow meters with 4-20 mA HART output that connect straight to your DCS. These meters handle heavy oil viscosity from 10 to 1000 cP and deliver steady readings even during cold starts and pump pulsations.
We receive calls from power plant maintenance leads across Malaysia and Vietnam about false low-flow alarms. A steam turbine loop pushes hundreds of litres per minute through thin bearing gaps. If that flow dips for even a few seconds, the pad temperature spikes and the safety system trips the unit. Operators lose days of production. The flow meter must be right, and it must stay right.
Here is the thing: a classic turbine flow meter with a spinning rotor suffers from bearing wear inside the oil stream. Fine metal particles and varnish build up and change the K-factor. Maintenance teams often replace those meters every overhaul cycle. We point them to a positive displacement oval gear flow meter instead. No bearings in the flow. No velocity dependency. You measure actual fluid pockets pushed through the gears. The reading stays accurate whether the oil is cold ISO VG 46 or warm VG 32, and the output does not drift after filter changes.
Why Oval Gear Meters Suit Turbine Oil Control
Oval gear meters from Silver Instruments hold high accuracy on turbine oil without in-field recalibration. A generator lube oil system in Lahore struggled for two winters because the previous vortex meter lost signal when ambient temperature dropped below 15 degree Celsius. The oil thickened to 450 cP and the vortex shedding collapsed. Their shift manager swapped in one of our oval gear meters sized for 8 to 80 L/min on a DN32 line. The mA output settled within three seconds after the pump started, and the DCS never tripped again on low flow.
You get a 4-20 mA signal scaled to your operating range, plus a frequency pulse for totalised litres. Add a built-in PT100 probe and you can compute mass flow in kg/h directly in the control room. This allows the predictive maintenance team to trend oil consumption over weeks and spot a failing pump or a clogged filter before it triggers an alarm. The meter needs no straight pipe run. Install it right after the pump discharge or between elbows on a compact lube oil skid.
Integration with Plant Controls and Maintenance Data
Most power stations still run scheduled checks, but the shift is toward condition-based monitoring. A HART-enabled meter opens that door. You pull digital diagnostics, flow totals, and temperature readings over the 4-20 mA pair without extra wiring. Silver Instruments oval gear meters ship with M20 conduit entries, IP65 or IP67 bodies, and optional ATEX Zone 1 certification for turbines near gas storage. You can mount the meter directly onto the oil skid without a separate shelter.
Wh
_600x400.jpg)
Sizing and Getting a Specific Quote
Most bearing oil lines run between 15 L/min and 180 L/min through DN20 to DN50 pipes. Standard pressure loss stays under 0.2 bar at full scale. For high-pressure seal oil circuits that run at 120 bar, we supply meters with heavy-duty housings. Selecting the correct meter depends on your real process numbers, not a generic datasheet.
To receive a price and delivery time within one business day, send us these four numbers: actual oil viscosity in cSt at operating temperature, minimum and maximum flow rate in L/min, pipe inside diameter in DN, and normal oil temperature. A typical request looks like this: “ISO VG 46 oil, 10 to 60 L/min, DN40 pipe, 55 degree Celsius.” We will match materials (cast steel or 316L), seals (NBR, FKM, or PTFE), and output protocol. Stock in Singapore and Australia covers most DN15 to DN40 sizes. For an urgent outage, we dispatch via DHL and you get tracking within hours.
Frequently Asked Questions
Which turbine oil types can your meters handle? Everything from standard mineral oils (ISO VG 32, 46, 68) to synthetic esters and fire-resistant phosphate esters. Just tell us the oil type so our factory selects the correct elastomer seals. We have shipped meters for GE and Siemens turbine packages without compatibility issues.
Do I need straight pipe or flow conditioning? No. Oval gear meters do not require any upstream or downstream straight run. You can place them directly after a pump or a 90-degree elbow. That cuts down lube skid real estate and pipe fabrication cost.
What signals go to the DCS? Standard is passive 4-20 mA with HART, plus an active pulse output for totaliser. We also supply RS485 Modbus RTU and dual alarm outputs in one unit. The wiring compartment has enough room for three separate cable glands.
Can the meter survive high oil temperature in a steam turbine? Standard models handle continuous 120 degree Celsius. We offer a high-temperature variant for 150 degree Celsius with a remote display that you mount away from hot pipe surfaces. For typical bearing lube loops running at 50 to 70 degree Celsius, the standard model works without any derating.
How fast can I get a replacement during a forced outage? Our stock in Singapore and Australia covers common DN20 to DN40 flow ranges. If you email us your operating parameters by noon local time, we dispatch the same day. Most shipments reach Southeast Asian plants within three working days. For Middle Eastern power stations, we use DHL express and deliver in under five days.
