What is the principle of decrypting gas flow meters? The principle of gas flow meters is based on measuring gas flow rate through turbine rotation. The following is a detailed explanation of the principle of gas flowmeter:

1. Overview of working principle Gas flowmeter is an intelligent flow meter that calculates flow rate by measuring the flow rate of gas. The core component is a turbine, which begins to rotate when gas flows through it, and the speed of rotation is proportional to the flow rate of the gas. By measuring the speed of the turbine, the flow rate of gas can be indirectly measured. Secondly, the specific working principle of rectification and acceleration: When the airflow enters the flowmeter, it first passes through a rectifier. The function of the rectifier is to make the airflow more uniform and accelerate it, so that the Sakura can better drive the turbine to rotate. Turbine rotation: Under the action of airflow, the turbine overcomes the resistance torque and begins to rotate. The rotational speed of the turbine is directly proportional to the operating flow rate of the gas, that is, the larger the gas flow rate, the faster the turbine rotates. Speed measurement and accumulation: The rotation of the turbine is driven by mechanical transmission and magnetic coupling to drive the counter to rotate. The counter records the speed of the turbine and directly accumulates the total volume of gas under working conditions.

III. The Influence and Correction of Temperature and Pressure Due to the fact that gases are composed of a large number of randomly moving molecules with large distances between them, the volume of gases will change with changes in temperature or pressure.

. Specifically, the volume of a gas is inversely proportional to pressure and directly proportional to temperature. This means that when the temperature and pressure of the measured gas change, it is impossible to directly measure and compare the volumetric flow rate of the gas. To solve this problem, gas flow meters are usually equipped with volume correction devices. The volume correction instrument can measure parameters such as temperature and pressure of gases, and convert the actual measured gas volume flow rate into the volume flow rate under standard conditions based on these parameters. By doing so, it is possible to accurately measure and compare gas flow rates under different temperature and pressure conditions.

Fourth, Application and Advantages Gas flow meters have the advantages of high accuracy, good repeatability, wide range, small volume, relatively simple structure, and fewer moving parts.

. Therefore, it is very suitable for use in gas detection or measurement fields such as petroleum, chemical, power, metallurgical industries, as well as urban gas trade measurement and other occasions. In addition, gas flow meters can also adapt to different measurement needs and working environments by configuring different sensors and correction instruments. For example, temperature sensors and pressure sensors can be configured to measure the temperature and pressure of gases for more accurate flow measurement and correction.

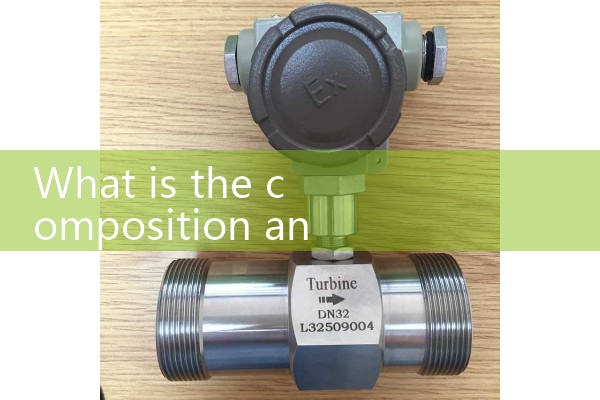

Fifth, Example Explanation: Taking the LWQ gas turbine flowmeter of Jiake Instrument as an example (as shown in Figure 1), this flowmeter adopts the above principle for measuring gas flow rate. When the airflow enters the flowmeter, it is rectified and accelerated by the rectifier to drive th
